End brushes knotted, full cable straight head, shank-mounted

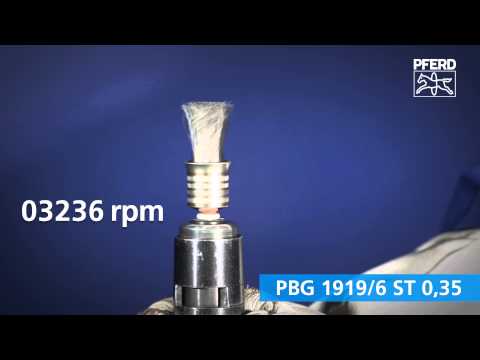

Knot Wire End Brush 1/2" Dia. Straight Cup .014 Carbon Steel 1/4" Shank

Item number:: 79183125
EAN:: 4007220504895

Knot Wire End Brush 1/2" Dia. Straight Cup .014 Carbon Steel 1/4" Shank 2

Knot Wire End Brush 1/2" Dia. Straight Cup .014 Carbon Steel 1/4" Shank Youtube

Technical data

PFERD Worldwide

Technical information

Knot Wire End Brush 1/2" Dia. Straight Cup .014 Carbon Steel 1/4" Shank

Dia. cup: 5/8 Inch
Dia. cup: 19 mm
Dia. external: 1/2 Inch
Dia. external: 19 mm
Dia. filament material: .014 Inch
Dia. filament material: 0.35 mm
Dia. shank: 1/4 Inch
Dia. shank: 6.35 mm
EDP no.: 83125
Filament material: Steel wire (ST)
Max. RPM: 20000 RPM
Mounting system: Shank
Number, knots: 6
Overall length: 2-3/4
Overall length: 70 mm
Packaging: Industrial packaging
RPM, optimum, from: 10000 RPM
RPM, optimum, to: 15000 RPM
Trim length: 1-1/8 Inch
Trim length: 28 mm
Packaging unit: 10 pieces

Description

Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire is temperature-resistant up to 600°F.

Advantages

Aggressive brushing action due to tightly-twisted wire knots.
Optimal access to hard-to-reach areas such as recesses and drilled holes.
Reduced flare for more precise surface contact.
Long service life through use of PFERD special wire.

Recommendations for use

Please observe the recommended rotational speeds.
Use variable speed power tools to control the spread of the brush.
For best performance, use a power tool with a minimum output of 500 watts.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 370 HV (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Flexible shaft drive; Power drill; Straight grinder
