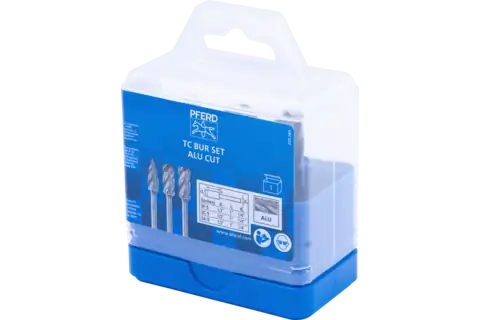

High-performance tungsten carbide bur set, ALU/Non-Ferrous cut

Item number:
21723196
EAN:
4007220490624
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 1
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 2
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 3
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos Youtube
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 1
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 2
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos 3
Copy of es_MX: Set de fresas de metal duro de alto rendimiento 23196 ALU, 3 piezas, Ø 12,7 mm, mango Ø 6,35 mm, aluminio/metales no férricos Youtube
Technical data Change variant
Login / Register
PFERD TOOLS worldwide
Choose options
PFERD TOOLS type
Reset Filter

This set contains

Technical information
Cut
ALU
Dia. shank
1/4 Inch
Dia. shank
6.35 mm
EDP no.
23196
PFERD TOOLS type
SET 23196 ALU 3TLG
Packaging unit
1 piece
Description

PFERD TOOLS has developed the ALU cut specifically for stock removal on aluminum. This cut achieves a high stock removal rate.
Advantages
  • Extremely high stock removal rate.
  • Creates large chips.
  • Reduced material adhesion.
  • Long service life and smooth running.
  • Can be used with peripheral speeds of up to 3,600 SFPM.
  • The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Recommendations for use
  • Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
  • Observe the recommended rotational speed.
Materials that can be worked
Aluminum
Brass
Bronze
Copper
Fibre-reinforced thermosetting plastics (GRP, CRP)
Hard aluminium alloys
Hard non-ferrous metal
Plastics
Soft aluminium alloys
Thermoplastics
Zinc
Applications
Cutting out holes
Deburring
Leveling
Milling
Milling out
Surface work
Work on weld seams
Drive types
Automated centers
Drive spindle
Flexible shaft drive
Robot
Straight grinder
Tool machine
PFERD TOOLS VALUE
product.aggregation.prv-eff
product.aggregation.prv-eff
Downloads
tm25-catalog-2-web-en-us.pdf
