Micro motor control device MIM STG2S 3/600

control device MIM STG2S 3/600 230 volts 60,000-1,000 RPM/260 watts

MIM STG2S 3/600

Item number:: 83000020
EAN:: 4007220071236

control device MIM STG2S 3/600 230 volts 60,000-1,000 RPM/260 watts 2

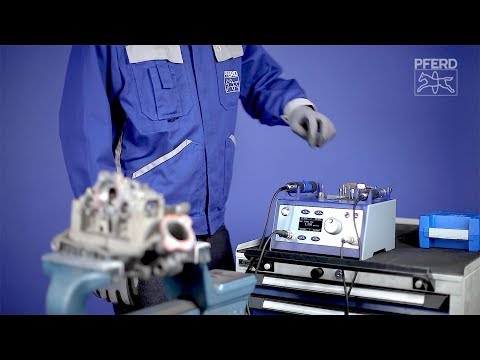

control device MIM STG2S 3/600 230 volts 60,000-1,000 RPM/260 watts Youtube

Technical data

PFERD TOOLS worldwide

Technical information

control device MIM STG2S 3/600 230 volts 60,000-1,000 RPM/260 watts

For micro motor handpieces: 1000 - 60000 RPM
Height: 3,94 Inch
Height: 100 mm
Length: 8,46 Inch
Length: 215 mm
Net weight: 2.338 kg
Net weight: 5.154 lb
Output voltage: 36 volts
Power HP: 0.35 HP
Power output: 260 Watts
Rotational speed range: 1000 - 60000 RPM
WEEE reg. no.: 55553582
Width: 7,09 Inch
Width: 180 mm
Packaging unit: 1 piece

Description

Electric grinders are universal all-rounders. They offer a high power output in relation to their size and weight. They are particularly suitable for use with grinding tools that require a constant rotational speed. Electric grinders can be used for nearly every application. They are used in many industries in different processes. The stepless electronic rotational speed control allows the use of various types of tools on one single tool drive.

The micro motor control device is suitable for rotational speed regulation of handpieces (max. 60,000 RPM clockwise and max. 30,000 RPM counter-clockwise). The stepless rotational speed control is possible by hand or foot switch. The control device has 2 switchable connection sockets for micro motor handpieces.

Special features

High power stability.

Safety notes

Protective earthing
Safety extra-low voltage

Contents

2 m power cable, 2 handpiece supports.
